Main Features
-
- Optimized operator compartment, especially FCU (Front Cockpit Unit), provides driving & operating comfort.
-
- A.C.T.(Active Control Technology) incorporated into full AC (Drive and Hydraulic) System provides smooth control.
-
- Proven and durable components provide enhanced maintenance interval and reliability
-
- Operator-friendly features provide Operating pleasure
-
- AC Motors & OCDB provide incredible and outstanding productivity.
-
- ISO 3691 regulation introduced in control valve and O.S.S.(Operator Sensing System) provide an optimum driving experience & operating safety
-
- Electrically Controlled Full Autoshift Transmission
-
- Tool-less side cover and wide open hood provide great serviceability
Product Concepts
Doosan Industrial Vehicle PRO 5 series offers both reliable and high quality products to its users. The PRO 5 series has been developed based on Doosan’s five ‘S’ core competencies of operator preference and performance: Strong, Safe, Stable, Smart and Stylish.
-
- Strong : Reliable Components, Powerful Performance
-
- Safe : Exclusive ODB Brakes, Ultimate Operating Safety Features
-
- Stable : High Residual Capacities, Smooth & Stable Operation
-
- Smart : Easy to Operate, Maximized Operator Comfort
-
- Stylish : Modern and Neat Appearance and Advanced Color Coordination
Main Specification

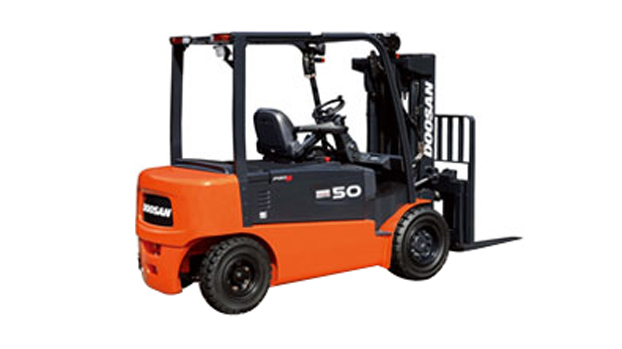

Main Specification of 4Wheel 4T Series B40/45/50X-5
|
Sales Model |
Unit |
B40X-5 |
B45X-5 |
B50X-5 |
|
Rated Load Capacity |
kg |
4000 |
4500 |
5000 |
|
Load Center |
mm |
500 |
500 |
500 |
|
Overall Length to Fork Face |
mm |
3062 |
3062 |
3092 |
|
Truck Overall Width |
mm |
1470 |
1470 |
1470 |
|
Height of Overhead Guard |
mm |
2330 |
2335 |
2335 |
|
Minimum Turning Radius |
mm |
2760 |
2760 |
2785 |
|
Travel Speed, Loaded |
km/h |
15 |
15 |
15 |
|
Lifting Speed, Loaded |
mm/s |
350 |
330 |
310 |
|
Wheel Base |
mm |
2000 |
2000 |
2000 |
|
Battery Voltage |
V |
80 |
